Home Products Clean Benches

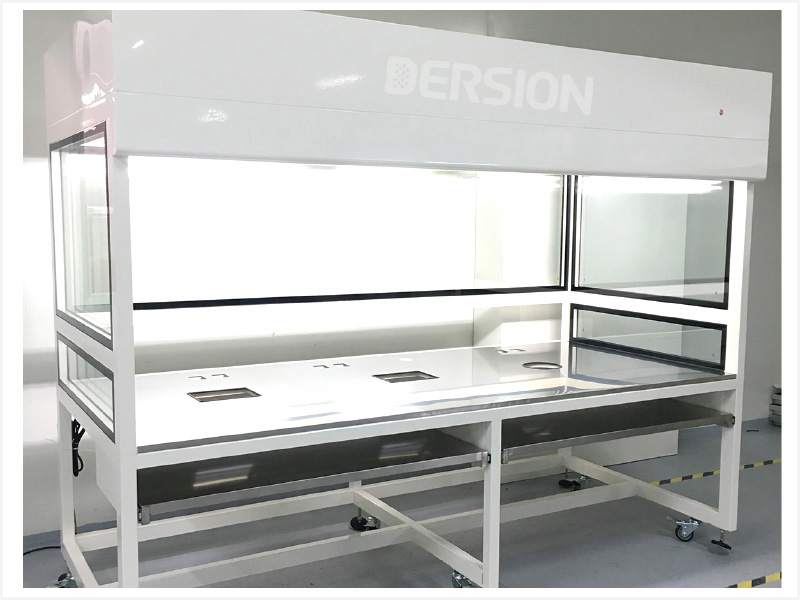

Vertical Laminar Flow Clean Bench

“Clean benches are one type of mini clean environment and offer a convenient method of controlling particulate contamination within a controlled work area.”(From Solid State Technology). As mini partial clean equipment, clean benches offer cleanliness 1-100 Class work zones. They can optimize technological conditions, protect the health of operators, improve products quality and increase the rate of finished products. They are used in a variety of industries, including semiconductor, pharmaceutical, medical device, health care, precision instrument, food, aerospace, nanotechnology, disk drive, injection molding and automotive, and so on.
Vertical laminar flow clean benches are the most popular products. They direct HEPA-filtered laminar air downward over the work area to provide 1-100 cleanliness class conditions and protect your work from contamination. Dersion has three types purifier vertical clean benches. This one is the traditional type.

Get A Quote

瀏覽次數(shù)：

Product Features

Product Features:
● Universal wheels with bolt fastening, reinforce the wheels, no more skew problem;
● Main material is stainless steel plates electrostatic sprayed, stable worktable;
● Downward air flows prevent the unfiltered outside air from passing into operation zones;
● LED panel lighting, bright and soft lighting, didn’t cause visual fatigue.

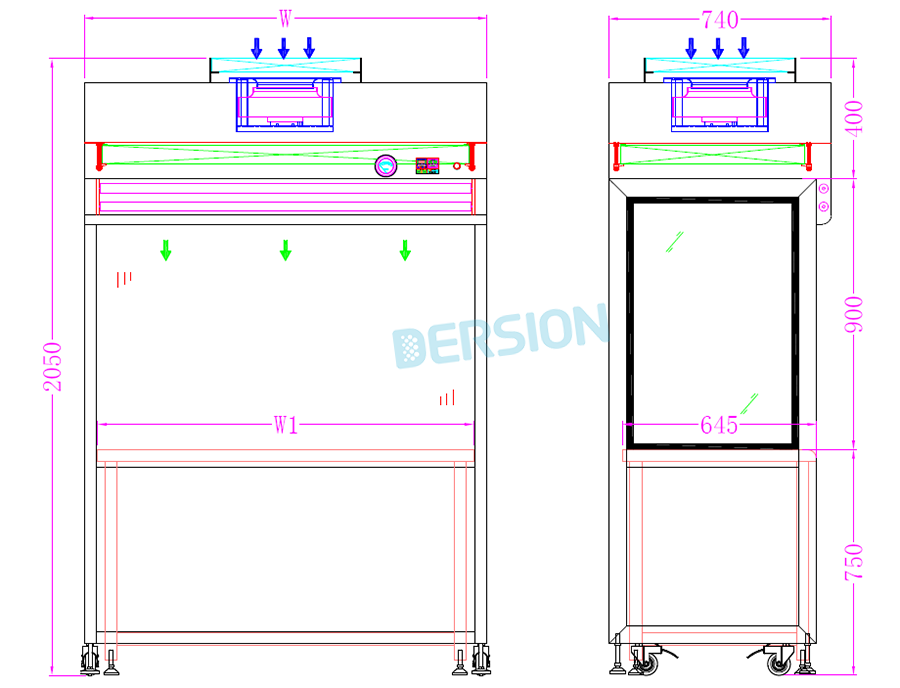

Standard Drawing:

Specifications:

Sizes: WDH	Outside: 1040x740x2000 Inside: 950x645x800	1340x740x2000 1250x645x800	1640x740x2000 1550x645x800	1950x740x2000 1860x645x800
People	1	1-2	2-3	3-4
Fan Velocity (m³/h)	905	1205	1510	1810
Air Speed (m/s)	0.45m/s±20%
Cleanliness	Class 100(USA 209E Standard)
Class
Filter System	99.99%@0.3um
Filter System	915x610x70-1pcs	1220x610x70-1pcs	915x610x70-1pcs 610x610x70-1pcs	915x610x70-2pcs
Noise	＜56dB	＜56dB	＜58dB	＜60dB
Noise	0.2m right ahead of the cabinet and 1.2m above floor
Material of Cabinet table	Brushed Stainless Steel SUS304
Power	220V 150W	220V 175W	220V 250W	220V 275W

Case Share:

Shijia Optics

Dafeng (Quanta Shanghai Manufacturer)
