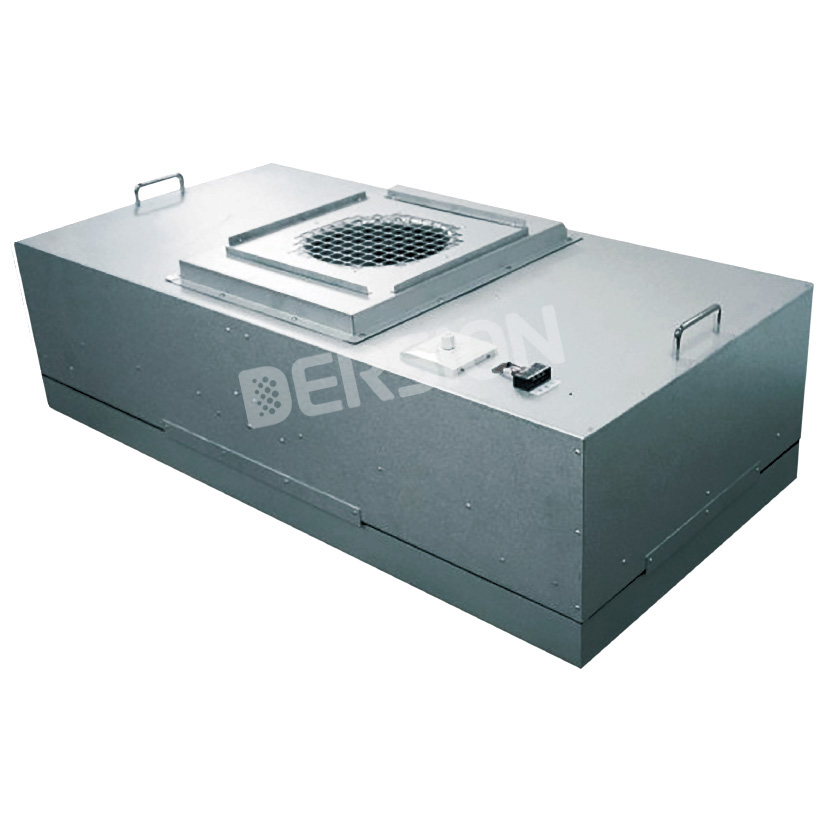

FFU Fan Filter Units

FFU(Fan Filter Units) are terminal air filter and air supply units with built-in fans and primary as well as HEPA filters. The fans running, sucking in air, the air streams filtered by primary and HEPA filters, then clean air blew out at speed of 0.45m/s±20%. FFU are modular units, installed in clean rooms, clean benches, clean work lines, modular clean rooms and partial Class 100 sites.

Functions:
Provide high quality clean air for different clean room and microenvironments
In the building and rebuilding of clean rooms, changing the number of FFU can change the cleanliness class.


Get A Quote

瀏覽次數：
Product Features:
● Speed controlled by single-machine or long-range control patterns;
● Extremely low power cost for running, especially installed with DC fans, reduce the running cost;
● Internally installed air flue diversion, lowest noise and improve fans’ efficiency;
● Imported maintenance-free centrifugal fans, give high wind and high hydrostatic pressure conditions, work life over 50,000 hours.
● Apply to clean rooms, clean booths, and clean work lines, Class1-1000;
● Tested by particle counter one by one according to US Federal 209E.

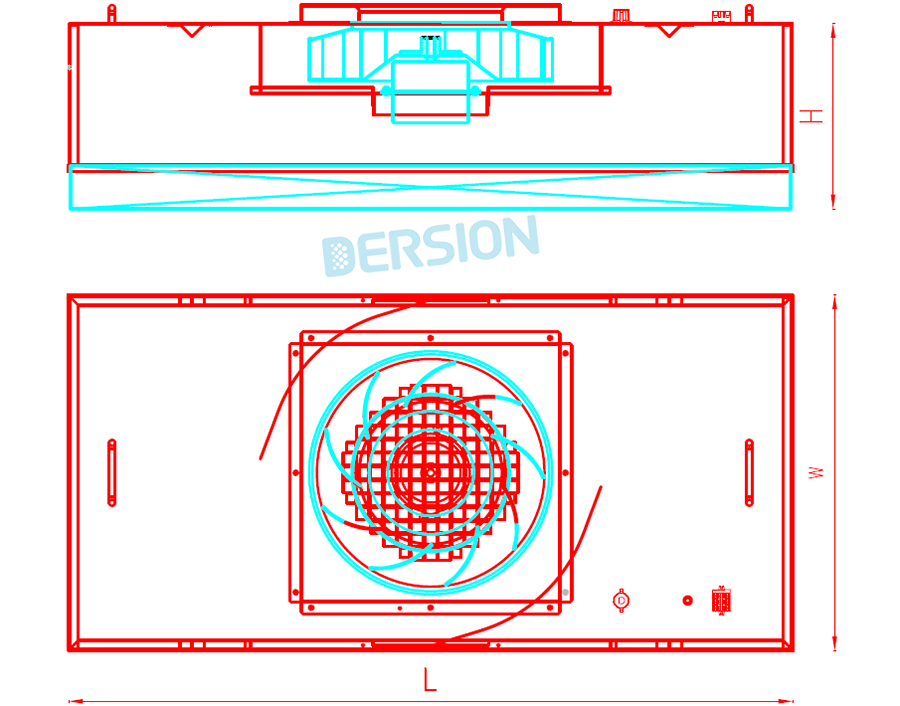

Standard Drawing:
Specifications:
       Size                  2´×2´                  2´×4´                    3´×4´                    4´×4´
Outside Size       575×575×325            1175×575×325             1175×875×325             1175×1175×325
 Air Volume (m3/h)  520 1080 1800 2210
Air Speed 0.45m/s±20%
 Cleanliness Class  100 Class( USA 209E Standard)
HEPA efficiency 99.99%@ 0.3um
HEPA Sizes 570×570×70 1170×570×70 1170×870×70 1170×1170×70
Noise (Test location: Underneath 1m, air speed 0.35m/s)
<47dB <53dB <54dB <55dB
Box Material Stainless steel/ Allumen/ Baking vanished steel
Power Source
230VAC  50Hz
Power 75w 120w 230w 230w
Weight 18Kg 35Kg 38Kg 41Kg

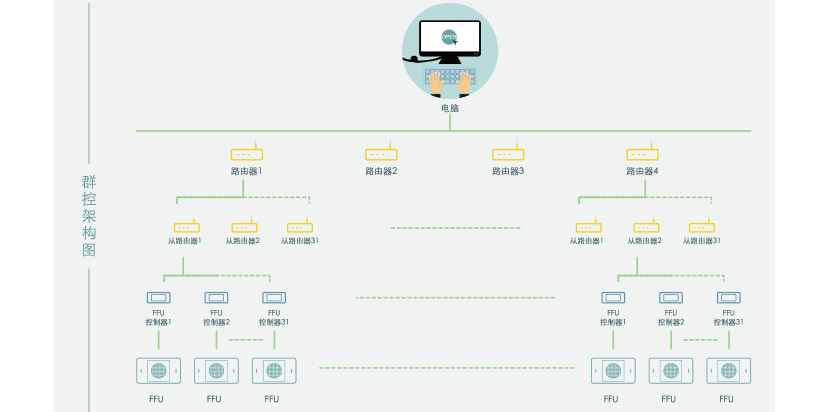

Group Control System:



Case Share:


Foxconn Group



USTC Institute
